Tag Configuration

qtmonitor – the tag configuration and data download application

To be usable, data logging tags require software applications to configure them prior to “flight” and to access any data collected “post-flight”. The NanoTag architecture is supported by an extensive software system that includes the base-boards used to charge the tags, a software library to support communication with the tags via a USB connection to the baseboard, and applications including a graphical user interface (GUI) tool – the NanoTag Monitor – and a collection of command-line tools for querying and testing tags. Collectively, these tools support the tags through the build process and through their use in biological expariments. In this section, we focus on the use of these tools rather than their underlying architecture.

NanoTag Monitor

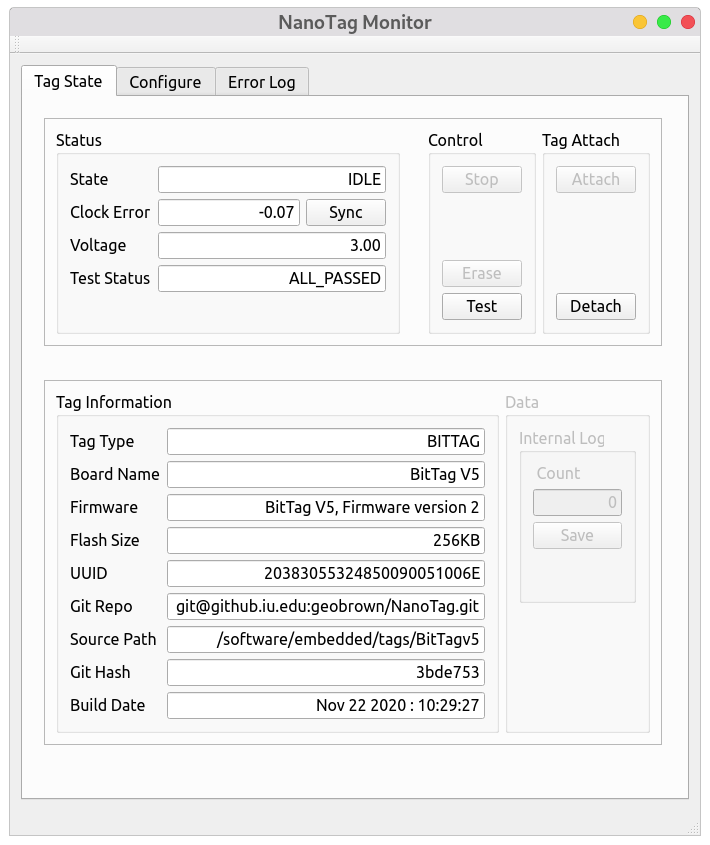

The primary tool for use by biologists is the NanoTag monitor. This tool, provides the ability to gather metadata about a tag (for example, it’s hardware and firmware revisions), to read and write configurations used in experiments, to synchronize the on-board clock, and to access tag data post-experiment. The monitor screen, displayed to the right, includes a number of tabs – “Tag State”, “Configure”, and “Error Log” – to access various features. The “Tag State” tab includes information about the the tag hardware and software, the current tag status, and various controls.
NanoTag Monitor
Fig. 1 NanoTag Monitor

Tag State Tab

The status area of the Tag State tab, provides the current state – in this case “IDLE”, the clock error, the current battery voltage, and the status of the tag self-tests (which should be run before deployment). The tag clock can be synchronized to the host computer (Sync button).
NanoTag Status
Fig. 2 NanoTag Monitor (Status)

Tag Information includes the following

  • Tag Type : The type of tag being accessed.
  • Board Name : The specific board hardware
  • Firmware : Tag firmware (software) version
  • Flash Size : Amount of storage on the tag
  • UUID : The processor unique identifier which can be used to uniquely identify a specific tag
  • Git Repo : The git repository. This can be used to retrieve the tag software and hardware sources
  • Source Path: The location of the tag software in the repository
  • GitHash : The hash used to identify the specific repository contents used to build the tag software
  • Build Date: The date when the tag software was built.
NanoTag Information
Fig. 3 NanoTag Monitor (Information)
The Tag State tab provides two important sets of controls. A running tag can be stopped (button disabled in the IDLE state), a stopped tag can be erased (button disabled), and self-tests can be executed (on an idle tag). The NanoTag monitor can be Detached from the base (and subsequently Attached). It is advisable to Detach the base, or close the NanoTag monitor, prior to unplugging the base and removing a tag.
NanoTag Control
Fig. 4 NanoTag Monitor (Control)
The final control area of the Tag State tab is the Data area. A tag that has executed and stopped can have its data downloaded by the Data save button. BitTags have only an internal data log, but some tags may additionally have external data logs stored in an external flash. The count field gives an indication of the amount of data available for download.
NanoTag Data
Fig. 5 NanoTag Monitor (Data Save)

Configuration Tab

The configuration tab provides several sub-tabs for configuring the data collection schedule (start/end times and hibernation periods), the data to be logged, and tabs for configuring sensors. The BitTag has a single sensor – the adxl362 accelerometer, but other tags may have different or additional sensors. The specific set of configuration sub-tabs is tag specific.

The schedule for an experiment is determined by the start and stop times and any periods when data collection should be suspended. It is important to remember that all times are UTC. By default, data collection begins immediately and runs until storage or energy are exhausted. Hibernation periods are defined by the start and end times – the BitTag supports two such periods) Schedule times are limited to hour level precision.

NanoTag Configuration
Fig. 6 NanoTag Monitor Configuration

The configuration tab has two sets of controls (visible in all sub-tabs). The current configuration can be saved to or restored from a file. This is particularly useful for designing a common configuration for multiple tags to be used in a single experiment. A (future) command-line tool will use such a stored configuration to enable rapid configuration of a set of tags.

The current tag configuration can be read. Finally, the configuration can be written to the tag – and consequently data collection begun – with the start button.

NanoTag Configuration Controls
Fig. 7 NanoTag Monitor Configuration Controls

Data Logging Configuration

The allowable log configurations are tag specific. For the BitTag, the only configuration control is the aggregation period. Activity is measured on a per-second basis and may be stored as a bit-per second, counts/minute, counts/four minutes, and counts/five minute. The primary determining factor is the total amount of data that can be stored. The BitTag can store approximately 15,000 data records in its internal memory. A record consists of a time stamp, battery voltage, temperature, and some number of aggregation bits. At the highest resolution, the maximum collection period is 10 days while at the lowest resolution the tag can store a full year of data.

Resolution Maximum Collection Period
Bit/second 250 hours
Count/minute 2500 hours
Count/four minutes 332 days
Count/five minutes 364 days
NanoTag Data Configuration
Fig. 8 NanoTag Data Logging Configuration

Sensor Configuration

The BitTag only has a single sensor – the Adxl362 accelerometer – and is used only as an activity detector. There are a number of parameters that can be configured including the accelerometer sample rate, range (in units of gravity), and the filter. In most instances, the default parameters are appropriate. In addition, the activity detector can be configured by setting the thresholds for transitions to active (active threshold), inactive (inactive threshold), and the time that a tag must stay below the inactive threshold to return to the inactive state (inactivity).
NanoTag Sensor Configuration
Fig. 9 NanoTag Sensor Configuration

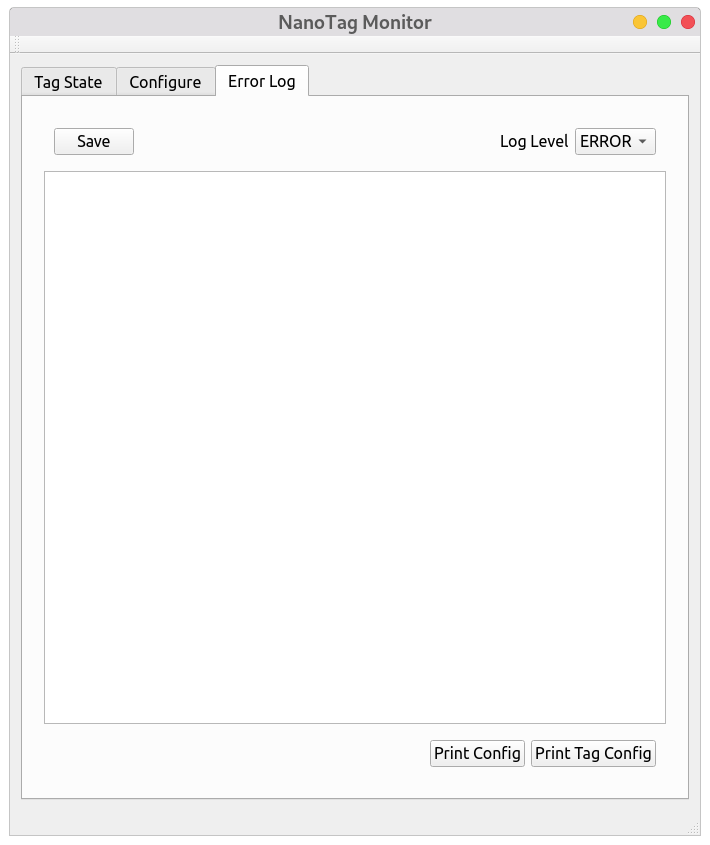

Error Log

The primary function of the Error Log tag is to provide debugging information. If errors occur in the monitor software, corresponding logging information is displayed in this tab. The contents of the error log can be saved to a file. In addition, the current tag and monitor configurations can be printed to the log.
NanoTag Error Log
Fig. 10 NanoTag Error Log

Configuration Files

The tag configuration can be saved (and restored from) a human-readable (JSON) file. Notice that every section of the configuration gui has a corresponding section in the configuration files. Dates/times are recorded as Unix Epochs (seconds since 1/1/1970). These can be checked with an on-line tool such as Epoch Converter.
{
 "tag_type": "BITTAG",
 "active_interval": {
  "start_epoch": 1606230000,
  "end_epoch": 1606406400
 },
 "hibernate": [
  {
   "start_epoch": 1606233600,
   "end_epoch": 1606237200
  },
  {
   "start_epoch": 1606244400,
   "end_epoch": 1606248000
  }
 ],
 "bittag_log": "BITTAG_BITSPERFIVEMIN",
 "acceltag_log": "ACCELTAG_UNSPECIFIED",
 "adxl362": {
  "range": "R4G",
  "freq": "S50",
  "filter": "AAquarter",
  "act_thresh_g": 0.35,
  "inact_thresh_g": 0.35,
  "inactive_sec": 0.5
 }
}
